PRODUCT NAME

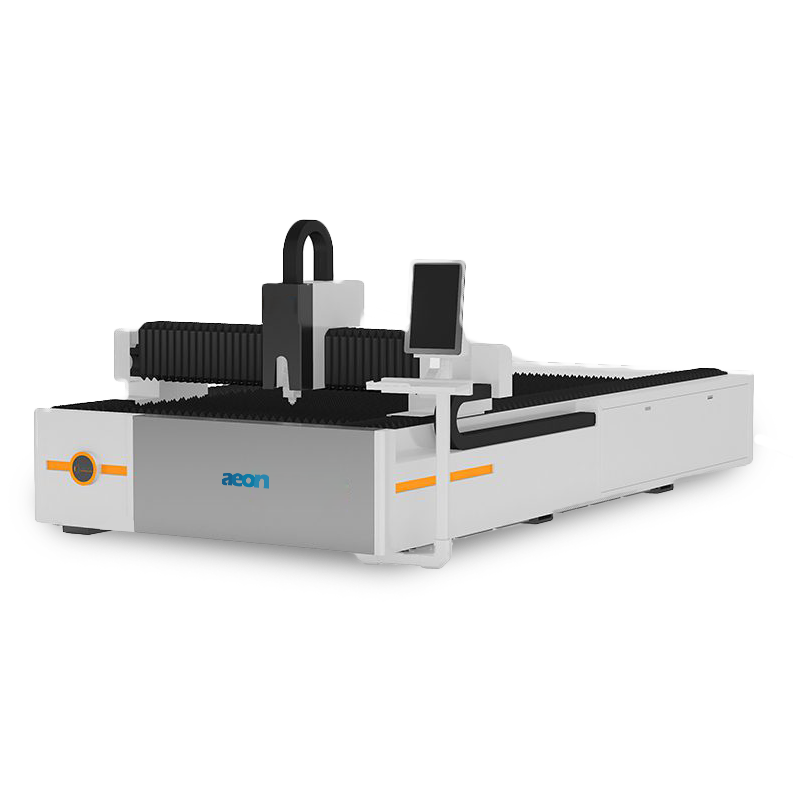

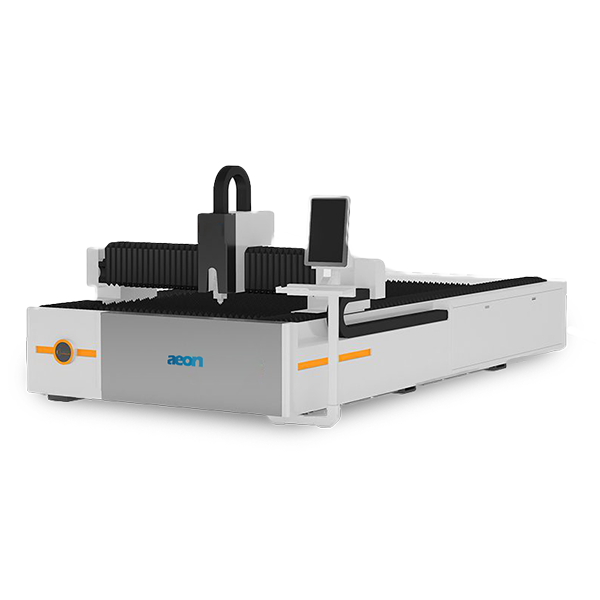

AE 3015 DG3 Fiber Laser Cutting Machine – 3KW
MATERIALS
Stainless Steel, Carbon Steel, Aluminum, Brass, Sheet Metals
APPLICATIONS
- Sheet Metal Processing: High-precision cutting, engraving, and marking
- Laser Cutting: Complex shape and pattern cutting
- Fabrication: Components for automotive, aerospace, and industrial machinery
- Signage & Advertising: Metal signs, logos, and decorative elements
- Prototyping: Rapid design and development of metal parts
- Electronics & Circuit Boards: Engraving and cutting on metal substrates
CUTTING THICKNESS
- Stainless Steel: Up to 10 mm
- Aluminum: Up to 8 mm
- Brass: Up to 6 mm
- Carbon Steel: Up to 22 mm
SPECIFICATIONS
- Model: AE 3015 DG3
- Working Area: 3000 × 1500 mm
- Laser Power: 3KW
- Laser Generator: Raycus CE (1080 nm)
- Cutting Head: Raytools BM110 / BOCI BLT310
- Control System: Raytools
- Working Table: Sawtooth
- Cooling System: S&A Industrial Water Chiller
- Max. Idle Speed: 120 m/min
- Maximum Acceleration: 1.5G
- Positioning Accuracy: ±0.02 mm/m
- Repeat Positioning Accuracy: ±0.01 mm
- Working Voltage: 380V / 3 Phase / 50Hz
- Working Temperature: 0–45°C
- Humidity Range: 45–85%
- Auxiliary Gases: Oxygen, Nitrogen, Air
- Working Life (Fiber Module): >100,000 hours
- Machine Dimensions: 1800 × 1800 × 1500 mm
- Weight: Not specified (Heavy-duty frame)
KEY FEATURES
- Raycus CE Laser Generator: High beam quality and maintenance-free operation
- Aviation Aluminum Gantry: Lightweight and durable for fast, accurate motion
- Z-Axis Ball Screw: High-precision motion system
- Taiwan Hiwin Rails: Ensures smooth, accurate motion with low wear
- HCFA Servo Motor: Fast response and minimal vibration
- MOTOVARIO Reducer (Italy): High output torque, low noise, long life
- ATC Automatic Oil Lubrication: Reduces maintenance and improves durability
- Raytools Controller: Easy interface with features like auto nesting and obstacle avoidance
- Schneider Electrical Components: Stable and widely trusted
- Heavy-Duty Machine Frame: Optimized design for stability and long-term performance
