PRODUCT NAME

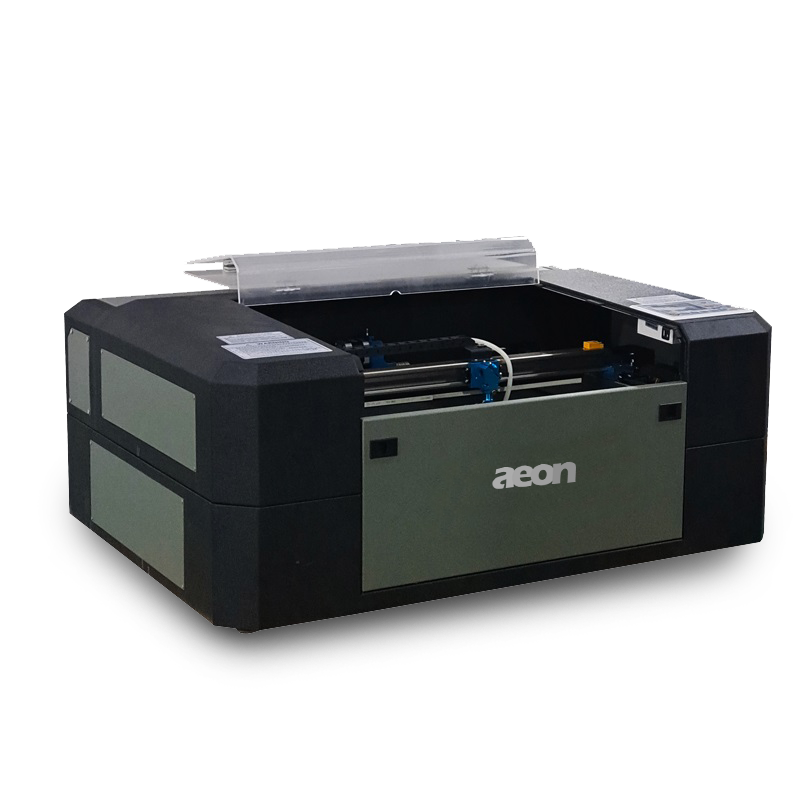

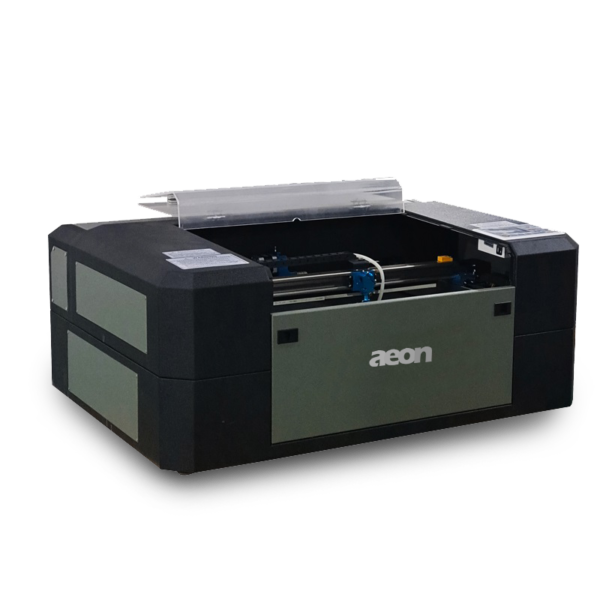

AE5030CW Desktop CO₂ Laser Engraving Machine – 40W
MATERIALS
Wood, Acrylic, Leather, Fabric, Paper, Plastic, Metals (for engraving only)
APPLICATIONS
- Personalized Gifts: Keychains, ornaments, photo plaques
- Signage & Labels: Small branding plates, custom signage
- Jewelry & Accessories: Acrylic/metal engravings for design pieces
- Architectural Models: Clean-cut components for scaled models
- Crafts & Decorations: Home décor pieces, art crafts
- Educational Projects: Safe, small-scale laser use for schools
- Leatherwork & Textiles: Wallets, belts, engraved fabric patches
SPECIFICATIONS
- Model: AE5030CW (CW-530)
- Working Area: 500 × 300 mm
- Laser Power: 40W CO₂ sealed glass laser tube
- Z Axis Height: 155 mm
- Table Size: 700 × 530 mm
- Pass-Through Door: 700 × ∞ × 15 mm
- Max Speed: 1000 mm/s (39.4 IPS)
- Operating Modes: Optimized raster, vector, combined
- Motion System: High-speed hybrid servo motor
- Cooling System: Water chiller
- Exhaust System: Built-in fan with 145 mm rear output
- Display Panel: 3.5” LCD screen (displays speed, file, power, etc.)
- Interface: USB & Ethernet
- Buffer Memory: 128MB
- Supported OS: Windows XP/2000/Vista/7/8/10
- Power Supply: 110–240V, 50/60Hz, single phase
- Environment: 0–45°C, Humidity 45–85%
- Dimensions (W×D×H): 1070 × 810 × 610 mm
- Net Weight: 50 kg
KEY FEATURES
- Compact desktop design with powerful laser cutting
- 40W CO₂ laser suitable for precision engraving
- High-speed performance up to 1000mm/s
- Hybrid servo motors for smooth motion
- Built-in water cooling and exhaust system
- Honeycomb table reduces underside reflection
- User-friendly LCD panel and intuitive controls
- Air assist to prevent burn marks
- Affordable and efficient for hobbyists and small businesses
