PRODUCT NAME

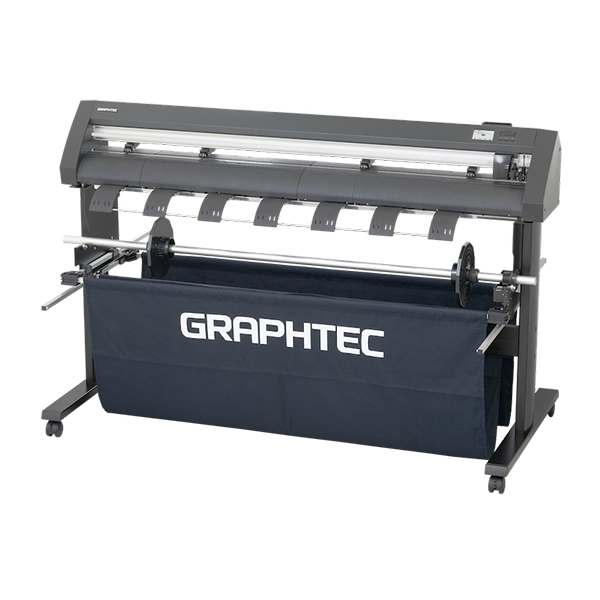

Graphtec CE8000 High-Quality Cutting Plotter Available in 40cm, 60cm, 130cm Models
MODELS AVAILABLE
- CE8000-40 40 cm
- CE8000-60 60 cm
- CE8000-130 130 cm
MATERIALS
Vinyl, PVC, Fluorescent Films, Reflective Marking Films, Heat Transfer Films, Backlight Films, Stickers, Cards, Labels
APPLICATIONS
- Signage & POP Displays
- Heat Transfer Vinyl Cutting
- Custom Stickers & Labels
- Product Packaging & Cards
- Traffic Signs
- Custom Merchandise Design
SPECIFICATIONS
| Feature | CE8000-40 | CE8000-60 | CE8000-130 |
|---|---|---|---|
| Cutting Area (W × L) | 375mm × 50m | 603mm × 50m | 1270mm × 50m |
| Accuracy Guaranteed Area | 355mm × 2m | 583mm × 2m (up to 5m) | 1250mm × 2m (up to 5m) |
| Mountable Media Width | 50484mm | 85712mm (120mm min opt) | 851372mm (120mm min opt) |
| Max Cutting Speed | 900 mm/s | 1000 mm/s | 1000 mm/s |
| Max Acceleration | 21.2 m/s² | 14.1 m/s² | 14.1 m/s² |
| Cutting Force | 450 gf (4.41N) | 450 gf | 450 gf |
| Repeatability | Max 0.1mm (within 2m cut) | Same | Same |
| Tool Installable | 1 | 1 | 1 |
| Pen Types | Oil-based / Fiber-tip pen | Same | Same |
| Blade Types | Supersteel | Same | Same |
| Media Thickness | Max 0.25mm | Same | Same |
| Interfaces | Wireless LAN, USB 2.0, Ethernet (optional) | ||
| Buffer Memory | 2 MB | ||
| Display | Touch Panel (240×128 dots) | ||
| Power Source | 100240V, 50/60Hz | ||
| Power Consumption | Max 140W | ||
| Operating Environment | 1035°C, 3575% RH | ||
| External Dimensions (W×D×H) | 677×289×266 mm | 903×582×1076 mm | 1644×811×1076 mm |
| Weight | 11kg | 21kg | 40kg |
KEY FEATURES
- Wireless LAN Connectivity Flexible placement in your workspace
- Touch Panel Operation Easy control with icon-based UI
- Email Notifications Receive updates on cut completion/errors
- Barcode Auto-Detection Automatically matches data with media
- USB Flash Support Operate without a PC
- Print & Cut Workflow Compatible with any printer
- Media Set Assist Suction fans prevent media lift
- Matrix Copy with 0mm Margin Efficient media usage
- Supports Half-Cut & Perforation Cut With a single tool
SOFTWARE INCLUDED
- Cutting Master 5 (Windows/Mac) Direct cut from Illustrator/CorelDRAW
- Graphtec Studio 2 (Windows/Mac) Design, edit, and control cutting operations
